- The transistor was invented in 1948 by John Bardeen, Walter Brattain and William Shockley at Bell Laboratory in America.
- A transistor is basically a silicon or germanium crystal containing three separate regions.
- It can either be n-p-n-type or p-n-p-type.
- It has three regions.The middle region is called the base and the two outer regions are called the emitter and the collector.
- Although the two outer regions are of the same type (n-type or p-type), their functions cannot be interchanged. The two regions have different physical and electrical properties.
- In most transistors, the collector region is made physically larger than the emitter region since it is required to dissipate more heat.
- The base is very lightly doped, and is very thin.This is because the number of carriers in the base should be small so that only small combination of hole-electron may take place in it & the collector current may not decrease considerably (i.e. the charge carriers constituting emitter current may pass on comfortably to the collector region).
- The emitter is heavily doped.
- The doping of the collector is between the heavy doping of the emitter and the light doping of the base.
- The function of the emitter is to emit or inject electrons (holes in case of a p-n-p transistor) into the base. The base passes most of these electrons (holes in case of p-n-p) onto the collector.
- The collector has the job of collecting or gathering these electrons (holes in case of a p-n-p) from the base.
- A transistor has two p-n junctions. One junction is between the emitter and the base, and is called the emitter-base junction, or simply the emitter junction. The other junction is between the base and the collector, and is called collector-base junction, or simply collector junction.
In operation of a transistor,
1. Action or Working of n-p-n Transistor
- The emitter-base junction of n-p-n transistor is forward biased whereas the collector base junction is reversed biased.
- When emitter-base junction is forward biased, electrons (majority carriers) in the emitter are repelled towards base.The barrier potential of emitter-base junction decreases and the electrons enter the base.
- About 5% of these electrons combine with the holes in the base region resulting in small base current (Ib).The remaining electrons (95%) enter the collector region because they are attracted towards the positive terminal of the battery connected with collector-base junction.
- For each electron entering the positive terminal of battery connected with collector-base junction, an electron from the negative terminal of the battery connected with emitter-base junction enters the emitter region.
- Thus continuous flow of electrons from emitter to collector through the base begins.
- The emitter current is more than the collector current.
.gif)
2. Action or Working of p-n-p Transistor
- The emitter-base junction of p-n-p transistor is forward biased whereas the collector-base junction is reverse biased.
- When emitter-base junction is forward biased holes (majority carriers) in the emitter (p-region) are repelled towards the base and diffuse through the emitter-base junction.
- The barrier potential of emitter-base junction decreases and the holes enter the n-region (i.e. base).
- A small number of holes (5%) combine with the electrons of n-region resulting in small base current.The remaining holes (95%) enter the collector region because they are attracted towards the negative terminal of the battery connected with the collector-base junction.These holes constitute the collector current.
- The collector current (Ic) is less than the emitter current which is constituted by all the holes moving towards the base.
- As one hole reaches the collector, it is neutralized by an electron from negative terminal of the battery.As soon as one electron and a hole get neutralized in the collector,a covalent bond is broken in the emitter region.The electron-hole pair is produced.
- The electron released so enters the positive terminal of the emitter-base battery VEB and the hole moves towards the collector.
- Thus, a continuous flow of holes from emitter to collector through the base begins.
.gif)
In a transistor circuit, the reverse bias is high as compared to the forward bias. Explain why ?
Ans. The reverse bias is kept very high as compared to the forward bias so that it may exert a large attractive force on the charge carriers to enter the collector region.
- A transistor has two junctions i.e. Emitter-Base junction and a Collector-Base junction.There are four possible ways of biasing these two junctions as shown in the table.
|
Condition
|
Emitter-Base junc
tion |
Collector-Base junction
|
Region of operation
|
|
1. FR
|
Forward biased
|
Reverse biased
|
Active
|
|
2. FF
|
Forward biased
|
Forward biased
|
Saturation
|
|
3. RR
|
Reverse biased
|
Reverse biased
|
Cut off
|
|
4. RF
|
Reverse biased
|
Forward biased
|
Inverted
|
- In condition 1,where Emitter-Base junction & Collector-Base junction are forward and reversed biased respectively.This condition is often described as forward reverse (FR).
- A transistor can be used as an oscillator.
- An oscillator generates ac output signal without any input ac signal.
- An oscillator is a self-sustained amplifier in which a part of output is fed back to the input in the same phase ( this process is called positive feedback).
- The block diagram of an oscillator is shown in the figure.

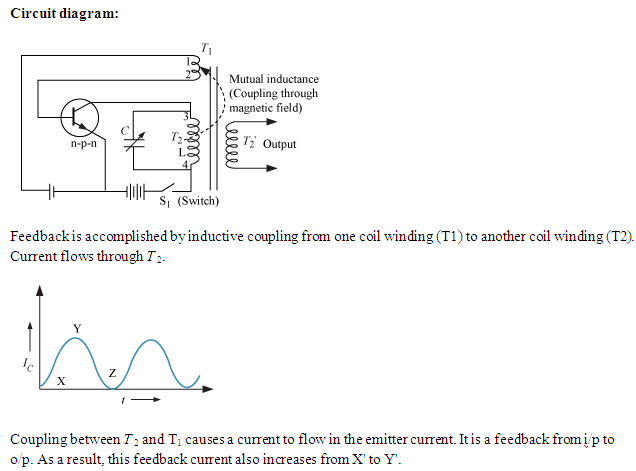

- The circuit diagram of the tuned collector oscillator is shown in the figure below.
- The frequency of the oscillation is given by
